Yet another busy day - the car is now distinctly smaller than it was after I cut the roof, B pillars and most of the gearbox tunnel away. Both the front and rear screens were broken, so I wasn't worried about trying to get them out in one piece. The special screen removal tool I bought was absolutely useless - it wouldn't even penetrate the bonding adhesive, so there was zero chance of doing the job by the book. I therefore had two choices - either a big hammer or Special Plan B. I chose the latter - this saw me run a length of duct tape across both sides of the glass and then attack it with a thin disc cutter (following a line up the middle of the tape). Much to my surprise, it worked really well, and both ends of the panel complete with sunroof came away with no dramas leaving enough metal all round for it to be useable should anyone need a replacement roof.

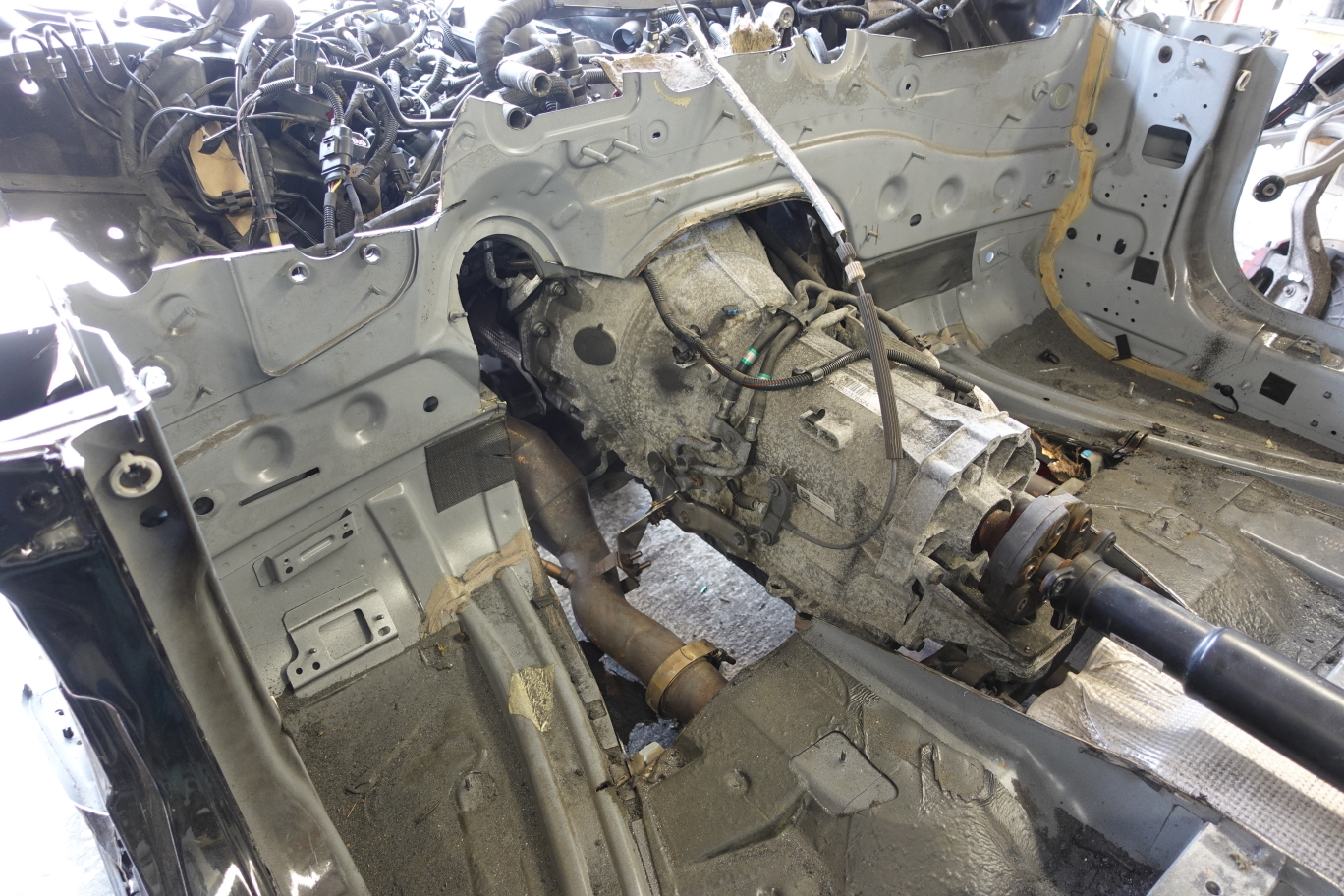

I then moved on - you're meant to remove the engine and transmission from underneath, due to the fact that you can't (or are not meant to) separate the gearbox with everything in place. Some deft work with the disc cutter, however, uncovered the access bung (the small round, black thing on the side) through which you can unbolt the torque converter. Hopefully, this means I'll be able to perform the operation in-situ and then lift the big bits out using the overhead electric hoist.
Attachments: |
DSC01645a.jpg [ 1.16 MiB | Viewed 1190 times ]
|
|
